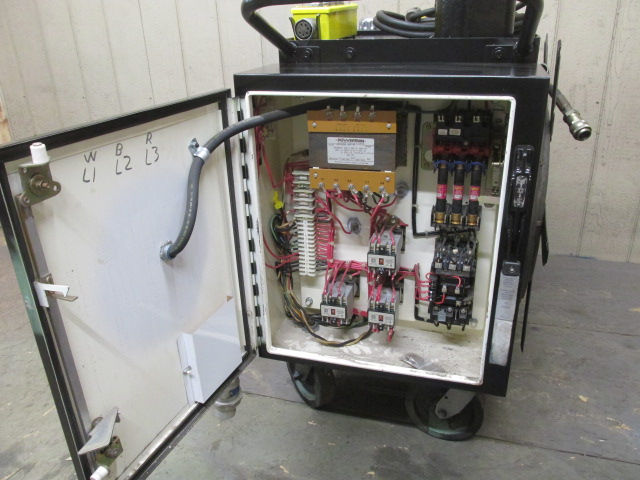

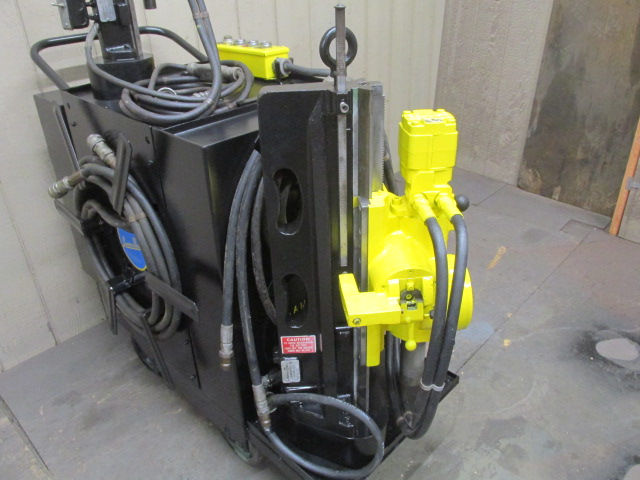

Lamina Hydraulics portable magnetic base drills with power unit. See below for specifications on both drill heads. This unit has been tested and is working as it should. The power unit is currently wired for 460v, 3 PH power input.


Description

MODEL H15010P DETAILSDESCRIPTION
Drill Capacity2”
Tap Capacity2”–6
Motor Horsepower8.30 std. / 9.48 opt.
Standard Maximum Torque3397 in. lbs.
Optional Maximum Torque5159 in. lbs.
Variable R.P.M.Up to 154
Optional R.P.M.Up to 115
Feed Method Power.010 per rev.
Optional Power Feed.005 per rev.
Tool Shank#5 Morse
Magnet Capacity6000 lbs.
Magnet Size10”
Weight255 lbs. (Shipping weight 315 lbs.)


Description

MODEL B10065P DETAILSDETAIL
Drill Capacity1”
Tap Capacity1”–8
Motor Horsepower6.64
Maximum Torque1000 in. lbs.
Variable R.P.M.Up to 420
Feed Method Power.005 per rev.
Optional Power Feed.0025 per rev.
Tool Shank#3 Morse
Magnet Capacity2300 lbs.
Magnet Size6-1/2”
Weight54 lbs (Shipping Weight 75 lbs.)



SHIPPING OPTIONS:

  • Regular Truck Freight (2 to 8 Days delivery time): Contact for Quote
  • Local Pickup: FREE
  • International Shipping: Please contact for Quote

Lamina Hydraulics Portable Hydraulic Drill Unit Magnetic Base H15010P B10065P

$14,699.99Price
